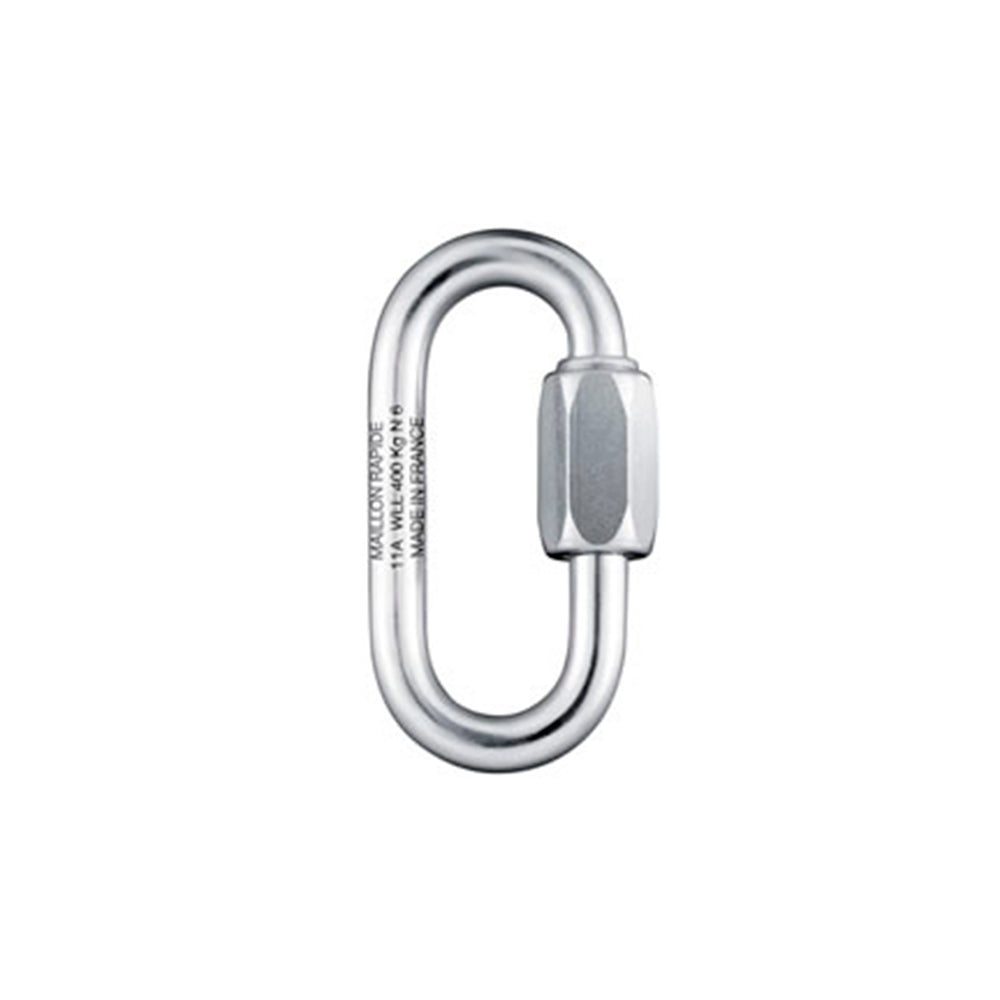

Maillon Rapide (zinc-plated steel)

The Maillon Rapide is a strong and reliable oval-shaped connector, designed for a variety of applications, including securing quickdraws to hangers on climbing walls. Made from zinc-plated steel, it offers durability and high resistance to wear. The manual nut opening ensures that the connector remains tightly fastened, even with frequent use and heavy loads. Available in two sizes, the Maillon Rapide provides an essential link between climbing equipment for optimal safety.

Key Features:
• Oval shape based on a chain link principle
• Manual nut opening for secure fastening
• Durable zinc-plated steel construction
• Reliable under heavy use and high loads

Specifications:
• Material: Zinc-plated steel
• Available sizes: 8 mm and 10 mm
• Weight (8 mm): 77 g
• Weight (10 mm): 137 g
• Working Load Limit (WLL) (8 mm): 700 kg
• Working Load Limit (WLL) (10 mm): 1100 kg
• Breaking Load (BL) (8 mm): 3500 kg
• Breaking Load (BL) (10 mm): 4400 kg

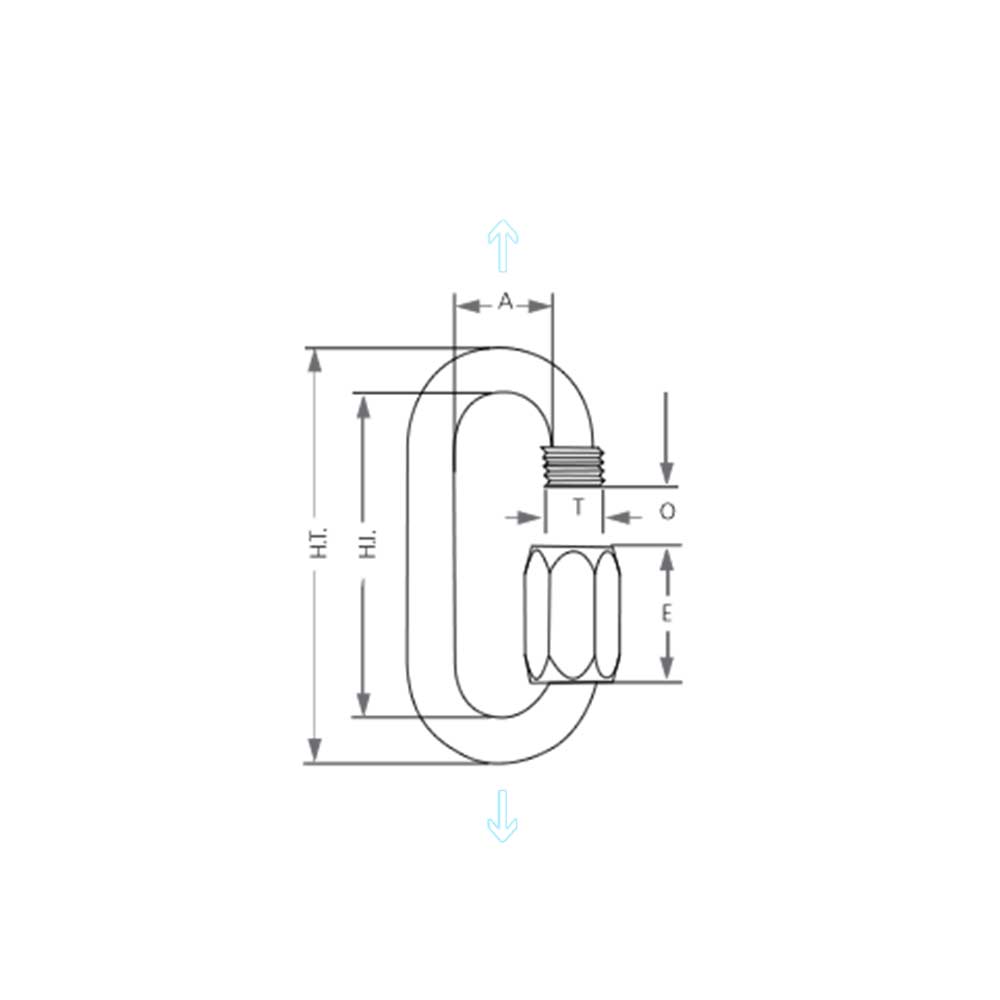

Dimensions (8 mm):

• H.T: 74 mm
• H.I: 58 mm
• A: 17.5 mm
• O: 11 mm
• E: 24 mm
• T: 11 mm

Dimensions (10 mm):

• H.T: 89 mm
• H.I: 69 mm
• A: 20.5 mm
• O: 12 mm
• E: 29 mm
• T: 13 mm
